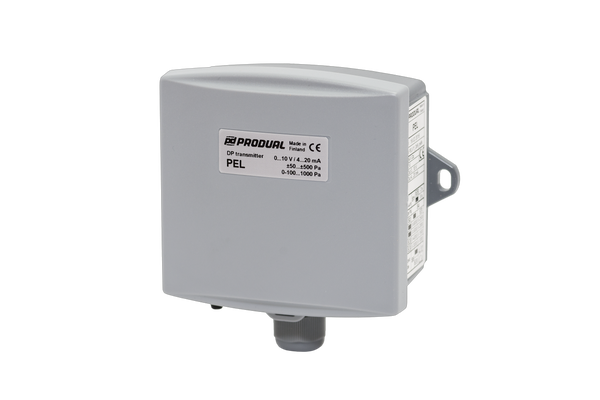

PEL-DK is a pressure transmitter for measuring pressures and pressure differences in air handling systems.
Product number1131200
Power supply24 Vac/dc, < 2 VA
Differential air pressure measurement ranges±50 Pa, ±100 Pa, ±250 Pa, ±500 Pa, 0...100 Pa, 0...200 Pa, 0...500 Pa, 0...1000 Pa, Custom
Time constant2 s or *8 s
Air pressure measurement accuracy±3 Pa ±1 % of reading (25 °C)
Zeroingautomatic; regularly eliminates the possible zero point drifting
Voltage output0...10 V / 2...10 V / 0…5 V
Current output4...20 / 0...20 mA, 700 Ω
IP protection classIP54
IP protection class notecable downwards
Cable glandM16
Ambient temperature0...45 °C
Ambient humidity0...95 %rH
Product dimensions (w x h x d)105 x 102 x 46 mm
Mountingwith screws, external lugs
MaterialsPC and PBT plastic
EAN136419767000729
